# Routing different DMX universes to the 4 XLR outputs of the vServer

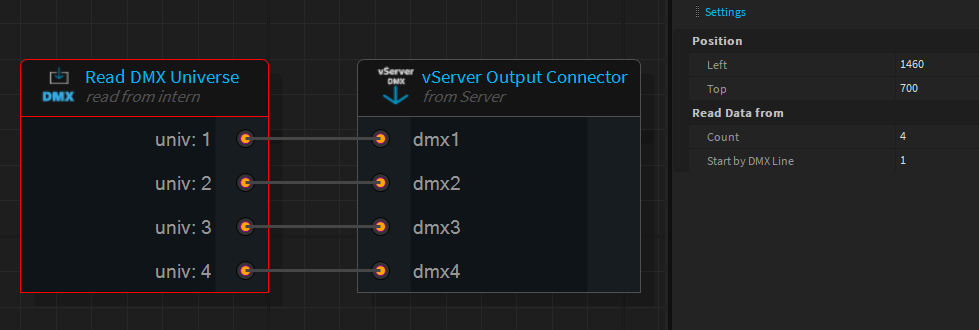

Two examples to output any DMX Universes to the XLR outputs on the vServer.

<figure><img src="https://4198123652-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhIYO0xEuDDA2b69m5L%2Fuploads%2Few3zk5f9riFSmlFZdhJG%2Fimage.png?alt=media&amp;token=79adaab0-426b-4400-a80f-eb5f2e2b7194" alt=""><figcaption></figcaption></figure>

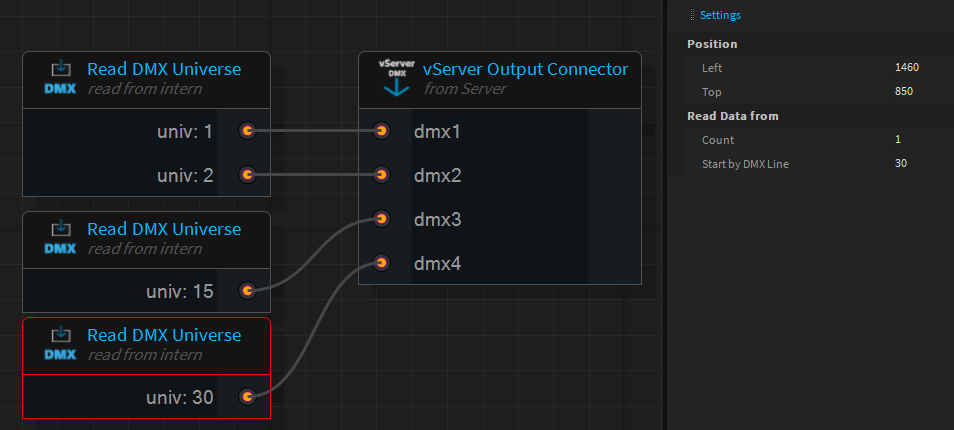

Different universes can also be connected to the XLR connectors of the server.

<figure><img src="https://4198123652-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhIYO0xEuDDA2b69m5L%2Fuploads%2Fg1K8aJtoPxQELjo64Irj%2Fimage.png?alt=media&amp;token=4294739c-3d46-47b2-a22f-4b79e1823861" alt=""><figcaption></figcaption></figure>
